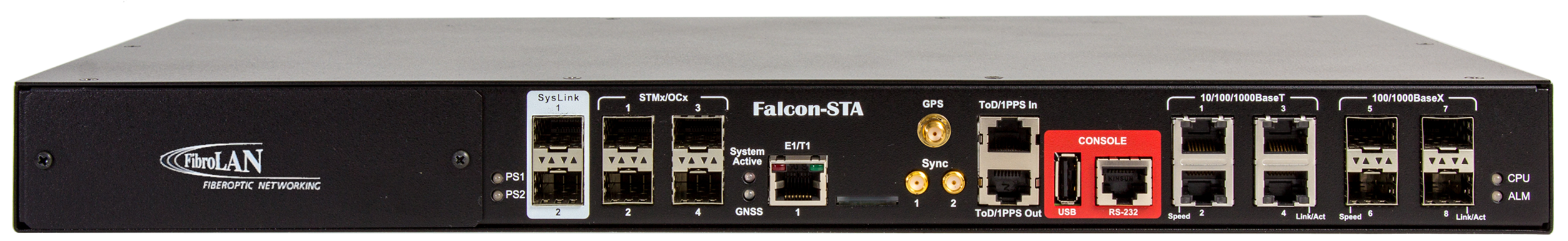

Falcon-STA

TDM Pseudowire aggregator with support for Carrier Ethernet, for smooth migration from legacy to packet

The Falcon-STA extensively supports aggregation of legacy services, carried over packet networks and offers a complete set of synchronization options.
This device is equipped with 4 x GE Copper, 4 x GE SFP and 4 x SFP ports for SDH/SONET (STMx/OCx). All ports can be used flexibly and operate at full wire speed.
A unique SysLink interface provides the means for full distributed redundancy on a system level.

Carrier Ethernet TDM Pseudowire aggregation of up to 252xE1s or 336xT1s into channelized 4xSTM1/1xSTM4 or 4xOC3/1xOC12
MEF compliant, supporting Ethernet Private Line (EPL) and Ethernet Virtual Private Line (EVPL) services with flexible mapping of the user traffic into Ethernet flows
Circuit Emulation Services (SAToP, CESoPSN, MEF8) with flexible and advanced synchronization schemes, including SyncE, 1588v2 (OC, TC and BC), external and integrated GNSS receiver
Powerful inter-system link facility (SysLink) to allow full Distributed Redundancy
Powerful inter-system link facility (SysLink) to allow full Distributed Redundancy
Robust bandwidth control mechanism and Service Level Agreement (SLA) monitoring per Ethernet flow starting at customer premises
Complete Ethernet OAM toolbox based on IEEE 802.1ag, ITU-T Y.1731, RFC2544, Y.1564 and MBD for OPEX reduction
Advanced high-speed protection mechanisms for link, path (G.8031), and ring (G.8032v2) service resiliency

Interfaces & Indicators	4 x 10/100/1000BaseT (RJ45) 4 x 10/100/1000BaseT (RJ45) 4 x 100BaseFX/1000BaseX (SFP)• 4 x STM1/OC3 (SFP) or 1 x STM4/OC12 (SFP) Supported SFPs: MM, SM, SFS, CWDM, DWDM
Architecture & Forwarding	Dual Hybrid Core (DHC) HW architecture Data Plane Upgradable (DPU) SDN and NFV ready (via expansion slot) Flow-based forwarding Performance: wire-speed, on all ports, all frame sizes Total throughput: 20Gbps, non-blocking MTU: 9600 bytes VLANs: 4K concurrent Provider bridging: 802.1ad (Q-in-Q) L1-L4 ACLso IGMPv3 snoopingo MLD snooping
Quality of Service	Classification based on L1-L4 info Classification based on L1-L4 info Ingress policing per flow Egress shaping Storm control: UC, MC, BC
Circuit Emulation (PW) Services	4 x STM1/OC3 or 1 x STM4/OC12 (SFP) interfaces 4 x STM1/OC3 or 1 x STM4/OC12 (SFP) interfaces Up to 252 x E1 or 336 x T1 PWs 2 x SysLink ports for inter-device redundancy SAToP, CESoPSN*, MEF8 support Flexible synchronization schemes (adaptive, differential, line, GNSS, 1588 and more) Jitter buffer up to 256msec per PW
Protection	Link aggregation: static or LACP Linear protection: G.8031 Ring protection: G.8032v2 Spanning tree: STP, RSTP, MSTP Loop protection
OAM & Diagnostics	IEEE802.3ah link OAM IEEE802.1ag CFM (HW assisted) ITU-T Y.1731 PM RFC2544 traffic generator & analyzer (up to wire speed) L2/L3 loopbacks w/ MAC/IP swap CopperLinkTest (TDR on Ethernet Copper ports) SFP diagnostics (SFF-8472) Traffic mirroring and remote mirroring sFlow
Management	CLI: Console (RS232), Telnet, SSH1/2 SNMP: v1/v2c/v3, extensive MIBs, trap profiles Web: HTTP/HTTPS Management VLAN IPv6 management RADIUS, TACACS+ 1x (port/MAC based) DHCP client & relay (incl. option 82) Link discovery: LLDP Remote System Update (TFTP or Web) Configuration upload/download (TFTP or Web) Text based config files Integrated into the NetACE NMS
Synchronization	Interfaces: Global Navigation Satellite System (GNSS) receiver (option) BITS – T1, ESF/SSM; E1, CRC4/SSM Synchronous Ethernet on all GE interfaces IEEE1588-2008 (PTP): Ordinary Clock (master, slave) Transparent Clock Boundary Clock GM option (with GNSS) 2 x SMA connectors for 1PPS/Clk, in/out ToD/1PPS, RS422, RJ45 G.8261, G.8262 ESMC (G.8264) Holdover: Built in Stratum 3
Power & Environmental	Dual, redundant, hot swappable power supplies AC/DC: 100-240VAC, 50/60Hz or 125VDC DC: 20-60VDC, ST connector Typical Power consumption <30W Extended Operating temperature: Standard: -10°C ÷ +50°C (14°F ÷ 122°F) Extended: -40°C ÷ +65°C (-40°F ÷ 149°F) Storage temperature: -40°C ÷ +80°C (-40°F ÷ 176°F) Humidity: 10-90%, non-condensing
Physical	Dimensions (HxWxD): 44x440x244mm (1.73x17.33x9.60 inch) Weight: ~3.3Kg (6.6 lb) Mounting: Desktop/Rack /Wall

Model	Part #	Description
Falcon-STA/1	7032	Carrier Ethernet PW Aggregator, 1xSTM1/OC3 port, 4x1000BaseX SFP ports, 4x10/100/1000BaseT ports, 1 removable AC/DC (100-240VAC/125VDC) power supply
Falcon-STA/2	7033	Carrier Ethernet PW Aggregator, 2xSTM1/OC3 ports, 4x1000BaseX SFP ports, 4x10/100/1000BaseT ports, 1 removable AC/DC (100-240VAC/125VDC) power supply
Falcon-STA/4/G	7034	Carrier Ethernet PW Aggregator, 4xSTM1/OC3 (or 1xSTM4/OC12) port, 4x1000BaseX SFP ports, 4x10/100/1000BaseT ports, integrated GNSS receiver, 1 removable AC/DC (100-240VAC/125VDC) power supply
Falcon-STA/1/D	7035	Carrier Ethernet PW Aggregator, 1xSTM1/OC3 port, 4x1000BaseX SFP ports, 4x10/100/1000BaseT ports, 1 removable DC (20V÷60V) power supply
Falcon-STA/2/D	7036	Carrier Ethernet PW Aggregator, 2xSTM1/OC3 ports, 4x1000BaseX SFP ports, 4x10/100/1000BaseT ports, 1 removable DC (20V÷60V) power supply
Falcon-STA/4/D/G	4037	Carrier Ethernet PW Aggregator, 4xSTM1/OC3 (or 1xSTM4/OC12) port, 4x1000BaseX SFP ports, 4x10/100/1000BaseT ports, integrated GNSS receiver, 1 removable DC (20V÷60V) power supply

Notes:

- Specifications are subject to change w/o prior notice
- For a complete list of available Falcon models, please contact Fibrolan
